This multi-purpose, high-paint-flow, high-detail Eclipse Series airbrush covers a wide range of uses. Commonly used to spray premixed or heavier paints, it is well suited for uses demanding precise control of spray when applying moderate-to-large amounts of paint to a variety of surfaces and to various-sized areas. This Eclipse Series brush has established a new benchmark for excellence in an all-purpose airbrush.

A unique "Pistol Grip" airbrush, the Eclipse G6 airbrush looks like a miniature spray gun, but sprays and performs like a large airbrush with its 0.6-mm stainless-steel nozzle.

• Equipped with a long tapered needle that ensures a smooth transition between fine-to-wide background spray
• Utilizes a dual-purpose air cap and a fan adjustment valve that lets the airbrush spray a round or oval pattern
• The round pattern is useful for painting graphics, while the oval shape creates a smooth background spray
• Uses a special fitting so airbrush bottles can be used instead of a gravity-feed cup, allowing for multiple color bottles to be interchanged quickly without having to clean a cup thoroughly - another unique feature for this type of spray unit - optional gravity-feed cups available

Specifications:

• 3 oz. High-Strength Jar
• 0.6-mm Screw-In Nozzle
• Fixed Double-Action Trigger Action
• 1/8 in. to 2 1/2 in. (3-mm to 6-mm) Round or Oval or Fan Spray Pattern

Features:

• Stainless Steel Paint Passage
• Pre-Set Needle Adjustment
• Air Pressure Adjustment
• Fan Pattern Adjustment
• Catridge-Style Air Valve Set
• Round Pattern Air Cap
• Fan Pattern Air Cap

Click here to download the Eclipse G6 parts guide in pdf format.

Attaching directly onto the airbrush, the Iwata-Medea Pistol-Grip Filter is the final defense to deliver clean, dry air to your airbrush. Miniature in size, the super-fine, 5-micron filter element performs like a full-size filter separator.

The clear filter bowl allows a visual inspection of built-up moisture and is evacuated through a spring-loaded release valve - without taking the filter off the airbrush.

Comfortable in the hand, the Pistol-Grip Filter acts as a handle on the airbrush to relieve muscle tension.

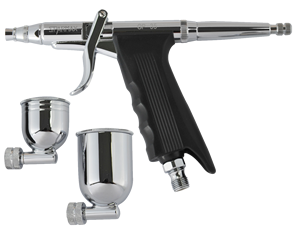

• Nozzle size: 0.35mm
• Side feed fluid cup: 7cc
  siphon plastic bottle available for GP-70 only
• Spray gun trigger design
• Preset color flow control

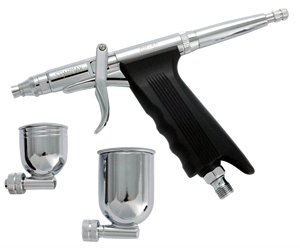

• Nozzle size: 0.50mm
• Side feed fluid cup: 7cc
  siphon plastic bottle available for GP-70 only
• Spray gun trigger design
• Preset color flow control

Operating on relatively low pressure, the 62 Sprayer efficiently sprays glazes, fixatives, medium consistency lacquers, varnishes and enamels. It handles the application needs that fall between an airbrush and a spray gun. Used by ceramists, furniture refinishers, vehicle decorators and other hobbyists.

The 62-1-3 sprayer is a general sprayer and great for basic coating needs.  It will handle thicker paints than the smaller pen type airbrushes.  Can spray Water or Solvent based fluids.  Spray pattern range is 1 to 2 inches.   If hose is needed order HL-3/16-10.
